Denoising and regulon inference of 10x Visium invasive ductal carcinoma slice#

In this tutorial, we demonstrate SpaRCL on the denoising and regulon inference of 10x Visium invasive ductal carcinoma stained with fluorescent CD3 antibody slice including

Gene expression denoising
Regulon inference and aucell

The dataset is available at 10x genomics website (Spatial Gene Expression >> Visium Spatial Gene Expression Fluorescent Demonstration (v1 Chemistry) >> Space Ranger 1.2.0 >> Invasive Ductal Carcinoma Stained With Fluorescent CD3 Antibody).

[1]:

import numpy as np
import pandas as pd
import scanpy as sc
import matplotlib.pyplot as plt
import glob

import SpaRCL as rcl

Data loading and preprocessing#

We load the dataset after spatial domain identification in previous tutorial.

[2]:

adata = sc.read_h5ad('./IDC_results.h5ad')
adata

[2]:

AnnData object with n_obs × n_vars = 4727 × 36601
    obs: 'in_tissue', 'array_row', 'array_col', 'leiden'
    var: 'gene_ids', 'feature_types', 'genome', 'highly_variable', 'highly_variable_rank', 'means', 'variances', 'variances_norm'
    uns: 'hvg', 'pca', 'relation', 'spatial', 'spatial_reconstruction'
    obsm: 'X_pca', 'spatial'
    varm: 'PCs'
    layers: 'counts', 'log1p'
    obsp: 'relation'

Gene expression denoising#

We perform gene expression denoising using gene relation matrix.

[3]:

adata_denoised = rcl.expression_denoising(adata)

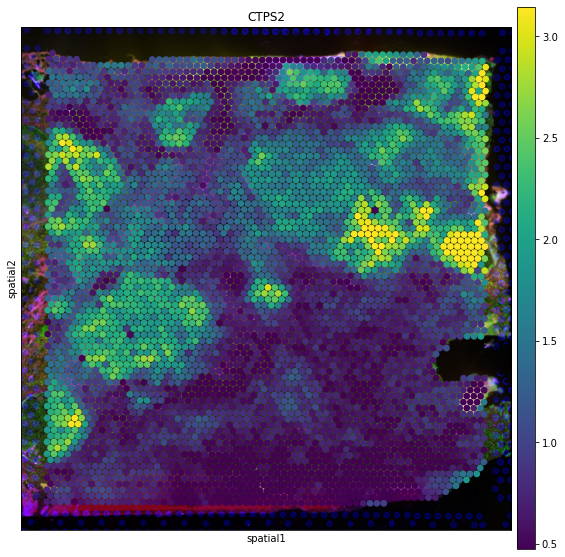

We show the spatial expression pattern of STPS2 (differentially expressed in tumor domain) before and after denoising.

[4]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata,
    img_key='hires',
    color='CTPS2',
    layer='log1p',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p10',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_10_0.png

[5]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata_denoised,
    img_key='hires',
    color='CTPS2',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p10',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_11_0.png

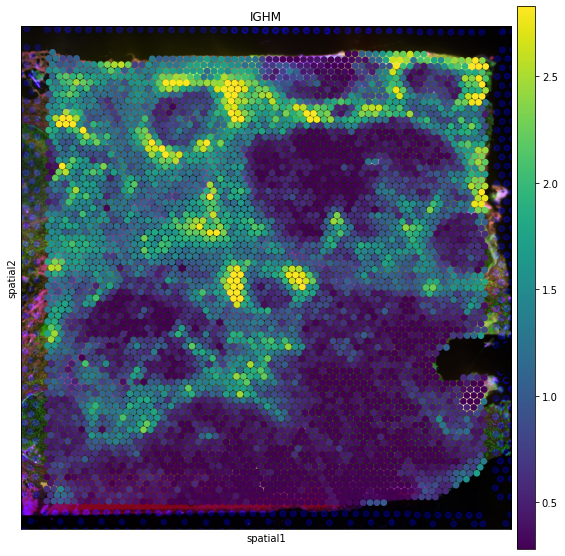

We also show the spatial expression pattern of IGHM (differentially expressed in immune domain) before and after denoising.

[6]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata,
    img_key='hires',
    color='IGHM',
    layer='log1p',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p10',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_13_0.png

[7]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata_denoised,
    img_key='hires',
    color='IGHM',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p10',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_14_0.png

Regulon inference and aucell#

We perform regulon inference using gene relation matrix.

[9]:

DATABASES_GLOB = "./cisTarget/hg19-*.mc9nr.feather"
db_fnames = glob.glob(DATABASES_GLOB)

MOTIF_ANNOTATIONS_FNAME = "./cisTarget/motifs-v9-nr.hgnc-m0.001-o0.0.tbl"

tf_names = np.array(pd.read_table("./tf_names/hs_hgnc_tfs.txt", header=None).iloc[:,0])

[10]:

rcl.regulons(
    adata,
    tf_names=tf_names,
    motif_annotations_fname=MOTIF_ANNOTATIONS_FNAME,
    db_fnames=db_fnames,
)


2022-07-10 13:31:39,642 - pyscenic.utils - INFO - Creating modules.

Create regulons from a dataframe of enriched features.
Additional columns saved: []

We perform aucell to compute the activity of each regulon on each spot.

[11]:

rcl.aucell(adata, normalize=True)

100%|██████████████████████████████████████████████████████████████████████████████████| 64/64 [00:03<00:00, 20.68it/s]

We create a new object adata_aucell using the aucell matrix for visualization.

[12]:

adata_aucell = sc.AnnData(adata.obsm['aucell'])
adata_aucell.obs = adata.obs.copy()
adata_aucell.obsm = adata.obsm.copy()
adata_aucell.uns['spatial'] = adata.uns['spatial'].copy()

We draw a heatmap to visualize the aucell matrix grouped by spatial domains.

[13]:

sc.pl.heatmap(
    adata_aucell,
    var_names=adata_aucell.var_names[:30],
    groupby='leiden',
    show_gene_labels=True,
)

../_images/tutorials_denoising_and_regulon_inference_24_0.png

We show the spatial activity pattern of ASCL2(+) regulon.

[14]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata_aucell,
    img_key='hires',
    color='ASCL2(+)',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p50',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_26_0.png

We also show the spatial activity pattern of BRF2(+) regulon.

[15]:

fig, axs = plt.subplots(figsize=(8, 8))

sc.pl.spatial(
    adata_aucell,
    img_key='hires',
    color='BRF2(+)',
    size=1.5,
    palette=sc.pl.palettes.default_102,
    legend_loc='right margin',
    vmin='p50',
    vmax='p99',
    show=False,
    ax=axs,
)

plt.tight_layout()

../_images/tutorials_denoising_and_regulon_inference_28_0.png
